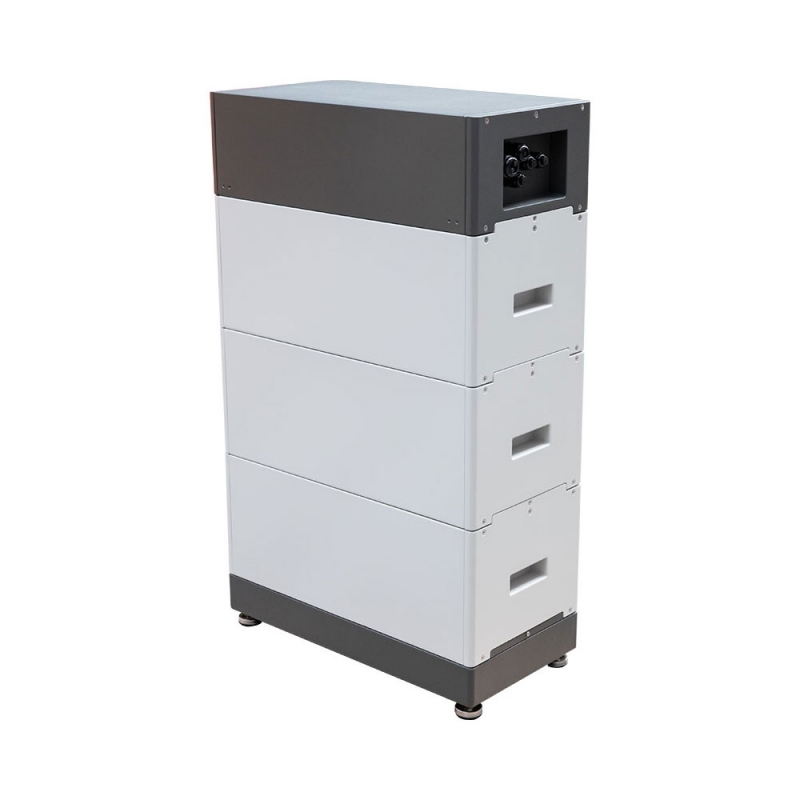

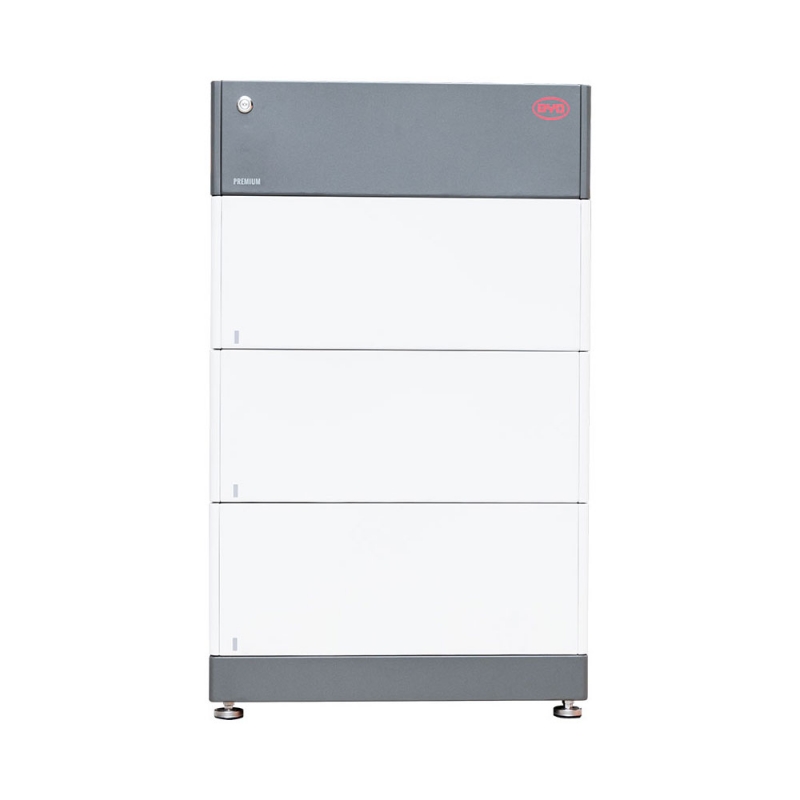

BYD Premium HVS 7.7
Flexible, Efficient, Simple
- Capable of High-Powered Emergency-Backup and Off-Grid Functionality
- Highest Efficiency Thanks to a Real High-Voltage Series Connection
- The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
- Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
- Two Distinct Modules to Cover the Complete Range of System Sizes
- Highest Safety Standards like VDE 2510-50
Battery: HVS 7.7
Number of Modules: 3
Usable Energy: 7.68 kWh
Max Output Current: 25 A
Peak Output Current: 50 A, 5 s
Nominal Voltage: 307 V
Operating Voltage: 240~345 V
Dimensions (H/W/D): 945 x 585 x 298 mm
Weight: 129 kg
