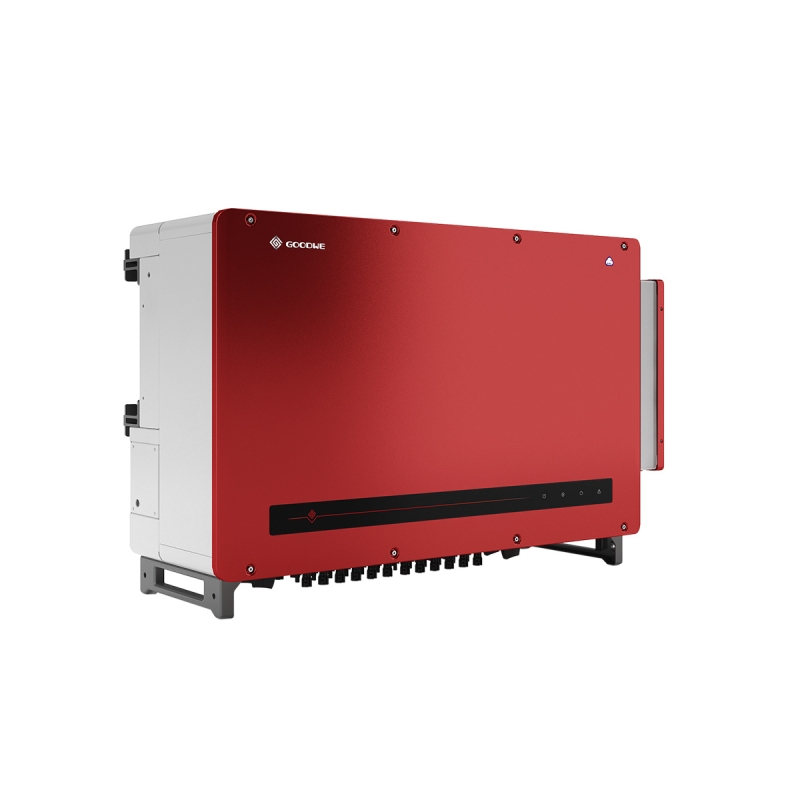

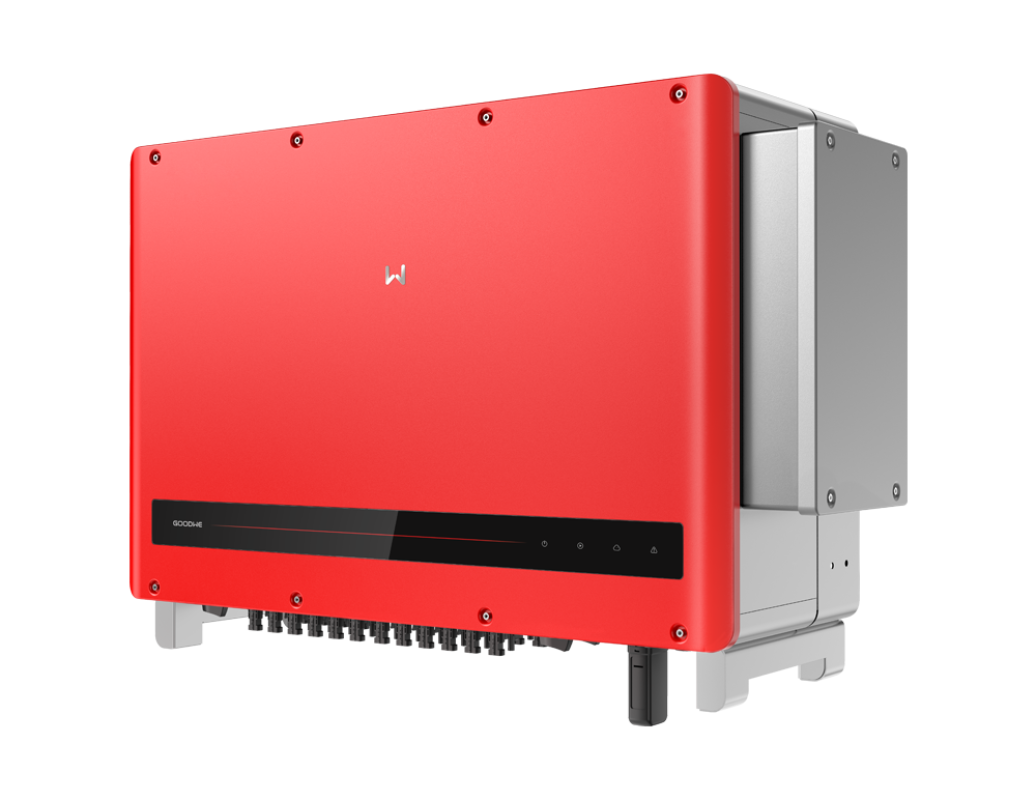

GoodWe GW100K-HT


Goodwe

Price:
$ 5,060 +VAT


The new HT 1100Vdc Series (73-136 kW) is GoodWe's new string inverter for C&I and small utility projects. The HT series offers up to 12 MPPTs, and is compatible with bifacial modules, with a higher threshold of DC current (Max. 15A per string). It includes PLC communication and internal humidity detection. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards. This inverter comes with an optional AC switch for reduced overall costs and reduced installation time. Configuration can be easily done via Bluetooth, and diagnosis and firmware upgrading can be operated remotely. This outstanding set of features was conceived to ensure the lowest levelized cost of electricity (LCOE).

AC nominal output (Pac,r): 100KW
Frequency (Frequency range): 50 / 60
Grid connection (voltage range): 220/230
Number MPP trackers: 1
DC input voltage range (Udc min - Udc max): 200-1100
Max. efficiency: 98.6 %
European efficiency (ηEU): 98.3%
Weight: 93.5 Kg
Degree of protection: IP 66
WLAN / Ethernet LAN: RS485 / PLC / WiFi
