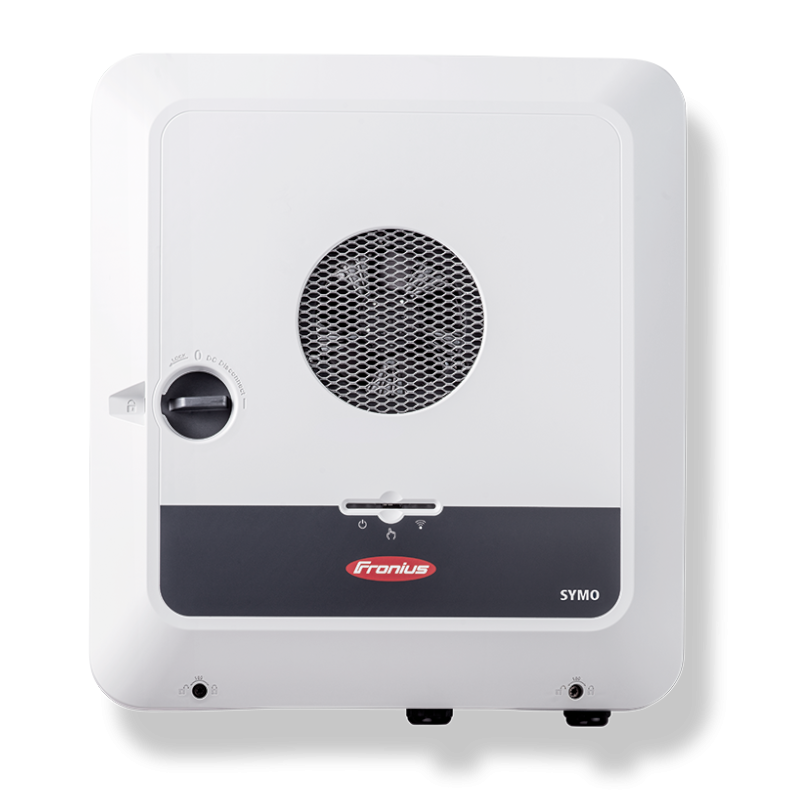

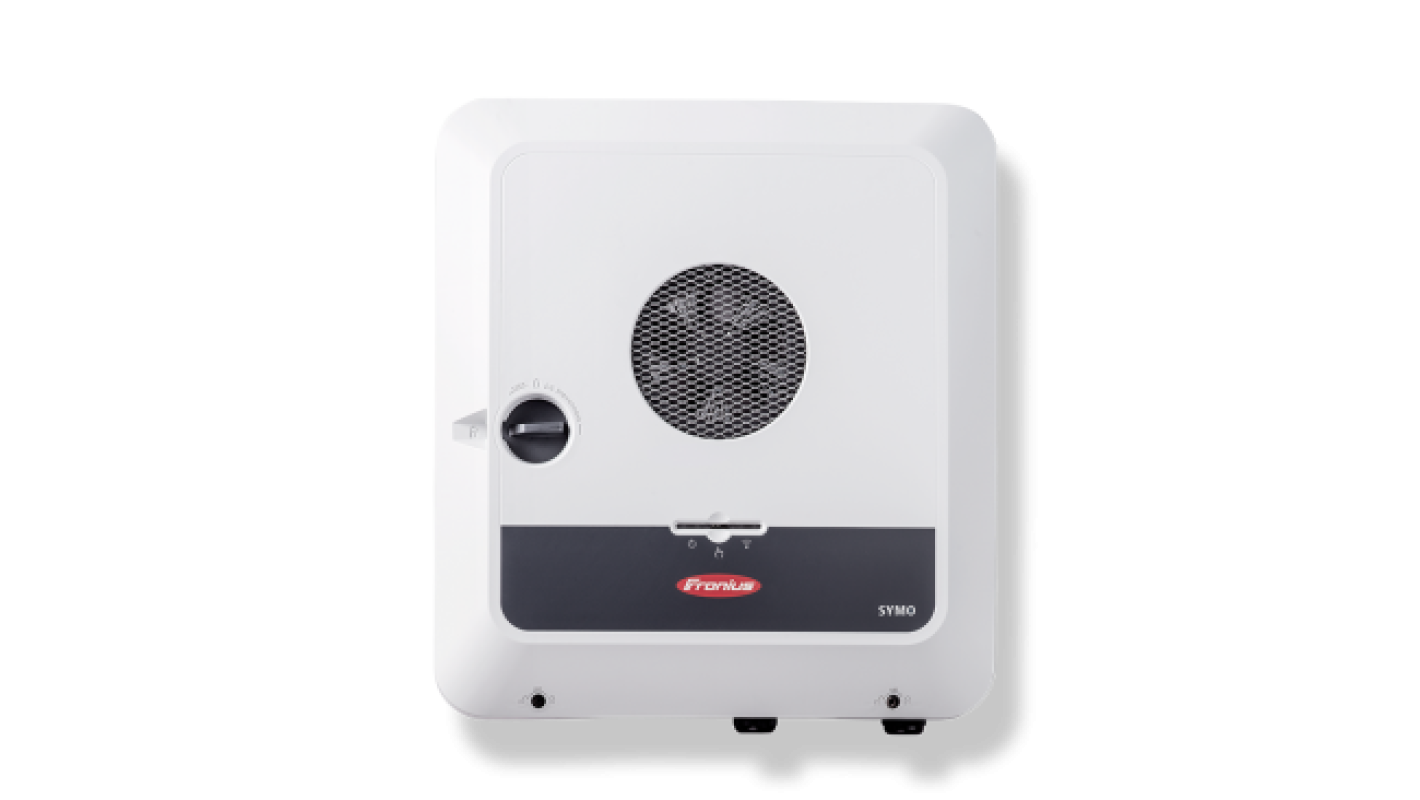

Fronius Symo GEN24 3.0 plus
The Fronius Symo GEN24 Plus, with power categories of between 3 and 10 kW, is the ideal hybrid inverter for private households. With many features as standard, the three-phase device covers all customer requirements. The GEN24 Plus leaves nothing to be desired with numerous features such as energy management functions, WLAN connection as standard, Ethernet connectivity and easy integration of third-party components. Thanks to a selection of backup power options (PV Point, full backup1 ) in particular, it ensures the highest degree of power supply reliability.
The innovative PV Point provides for the first time a basic emergency power supply even for those customers who do not wish to purchase a battery straight away. For customers who already have a battery, the device offers a tried-and-tested full backup solution that can supply the entire household with emergency power.
AC nominal output (Pac,r): 3000 W
Frequency (Frequency range): 50 Hz / 60 Hz (45 - 66 Hz)
Grid connection (voltage range): 3~NPE 400 V / 230 V or 3~NPE 380 V / 220 V (+ 20 % / - 30%)
Number MPP trackers: 2
DC input voltage range (Udc min - Udc max): 80 V - 1000 V
Max. efficiency: 98.1 %
European efficiency (ηEU): 96.7%
Weight (Inverter + Packaging): 15.6 - 19.4 Kg
Degree of protection: IP 66
WLAN / Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
