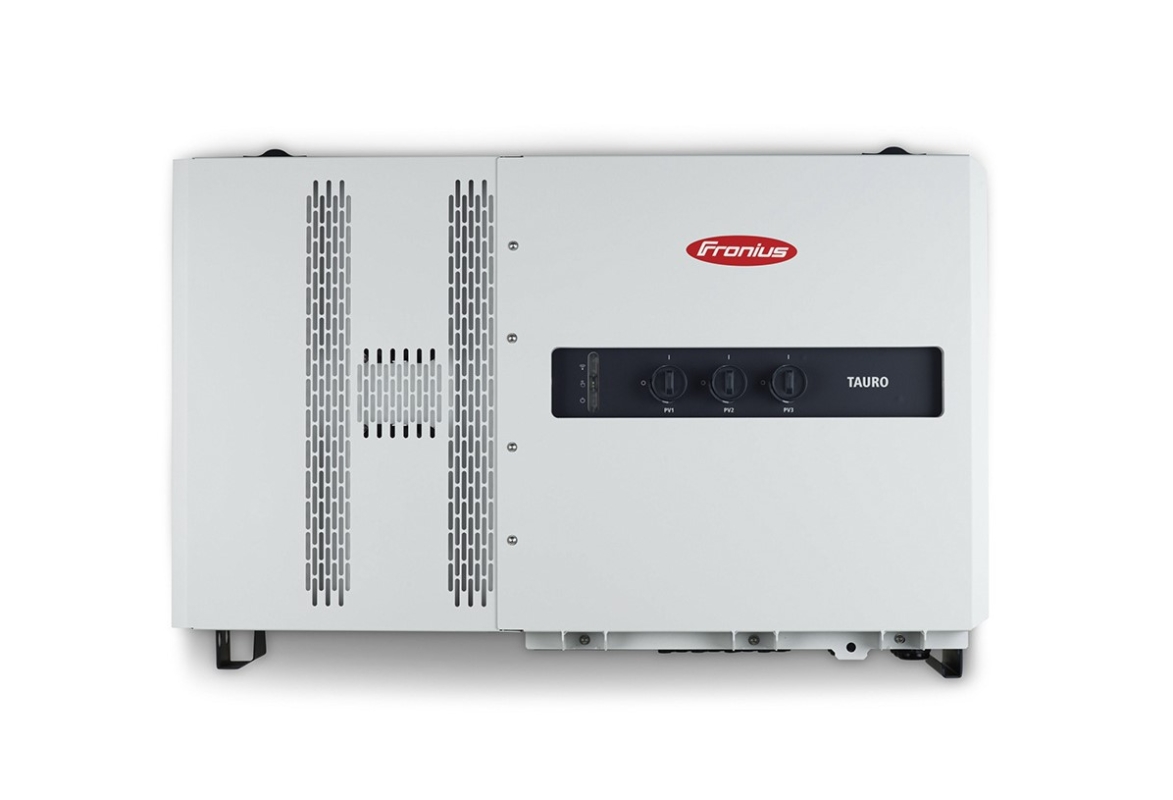

Fronius Tauro Eco 100-3-D
Maximum flexibility in terms of system design with minimal overall system operating costs: the robust Fronius Tauro inverter makes large-scale PV systems even more costeffective. Whether under direct sunlight or in extreme heat, its double-walled housing and active cooling enable full power and maximum yields even under the harshest environmental conditions. At the same time, the sturdy project inverter from Austria is quick to install and maintain.
AC nominal output (Pac,r): 100000 W
Frequency (Frequency range): 50 / 60 (45 - 65)
Grid connection (voltage range): 3~ NPE 400/230; 3~ NPE 380/220
DC input voltage range (Udc min - Udc max): 580 - 1000 V
Max. efficiency: 98.5 %
European efficiency (ηEU): 98.2%
Weight: 103 kg
Degree of protection: IP 65
WLAN / Ethernet LAN: 10/100 Mbit; max. 100 m Fronius Solar.web, Modbus TCP Sunspec, Fronius Solar API (JSON)
