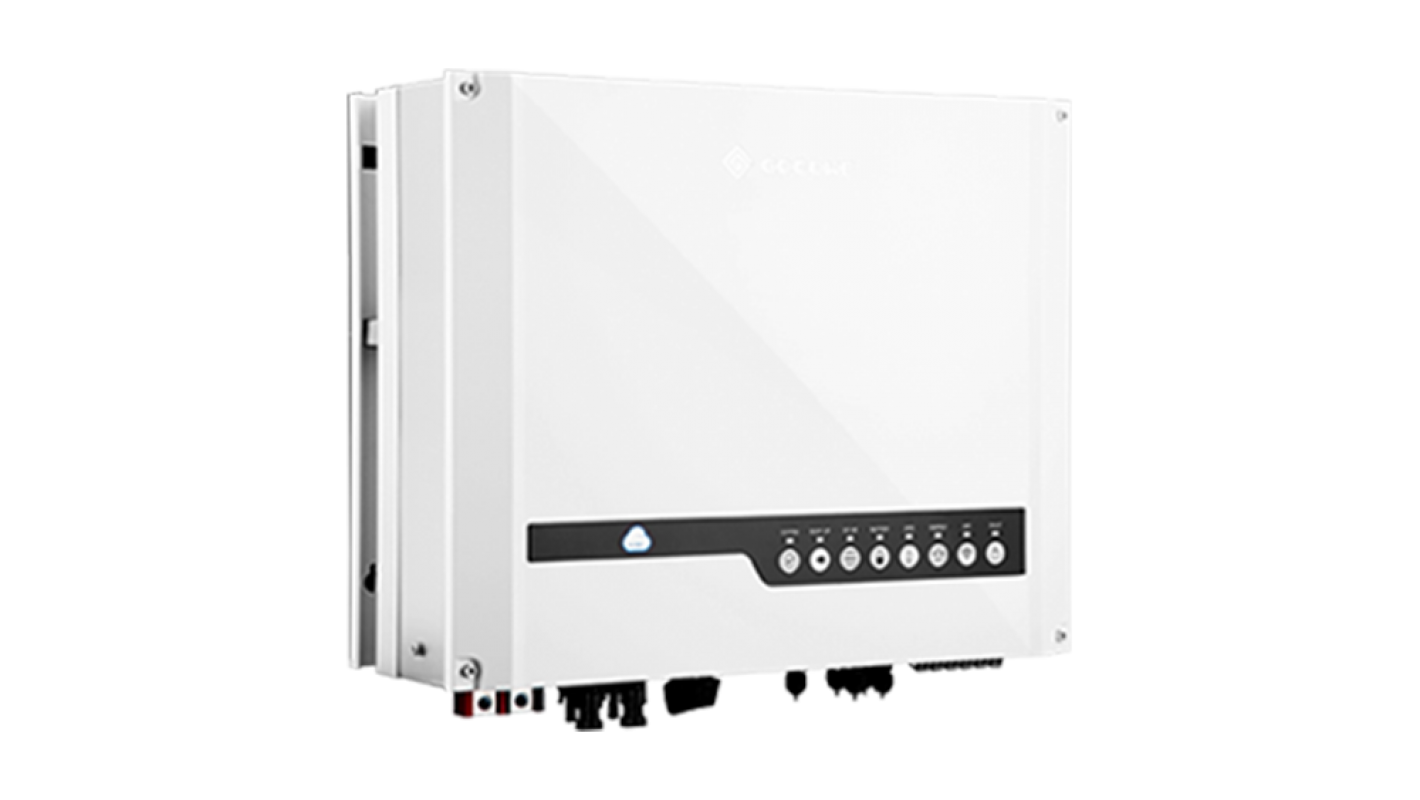

GoodWe GW5048D-ES
The GoodWe ES series bi-directional energy storage inverter is applicable with both on-grid and off-grid PV systems. It can control the flow of energy intelligently. During the day, the PV plant generates electricity which can be provided to the loads, fed into the grid or charge the battery. The electricity stored can be released when the loads require it during the night. Additionally, the power grid can also charge the storage devices via the inverter.
AC nominal output (Pac,r): 4600
Frequency (Frequency range): 50 / 60
Grid connection (voltage range): 230
Number MPP trackers: 2
DC input voltage range (Udc min - Udc max): 125~550
Max. efficiency: 97.6 %
European efficiency (ηEU): 97.0%
Weight: ... kg
Degree of protection: IP 65
WLAN / Ethernet LAN: RS485
