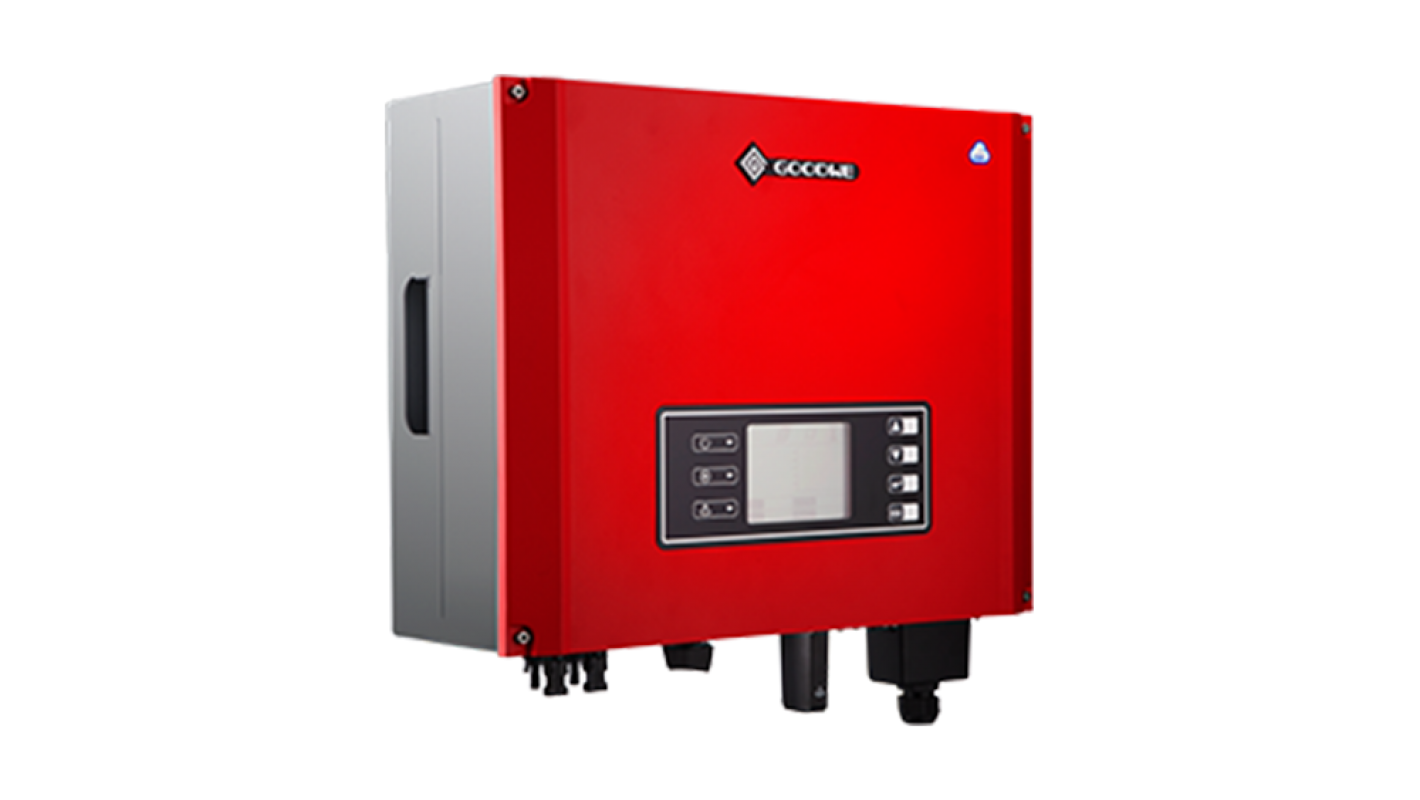

GoodWe GW5000-DT
The GoodWe Smart DT series of inverters is specially designed for three-phase home solar systems, covering a wide power range of 4kW, 5kW, 6kW, 8kW, 10kW and 15kW. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation due to its fan-less, natural convection cooling
AC nominal output (Pac,r): 5000*1
Frequency (Frequency range): 50 / 60
Grid connection (voltage range): 400, 3L/N/PE
Number MPP trackers: 2
DC input voltage range (Udc min - Udc max): 200~800
Max. efficiency: 98.0%
European efficiency (ηEU): ...%
Weight: 24kg
Degree of protection: IP 65
WLAN / Ethernet LAN: RS485 or WiFi
